Hand-Held Electric Vacuum Lifter for Tiles and Glass
Overview

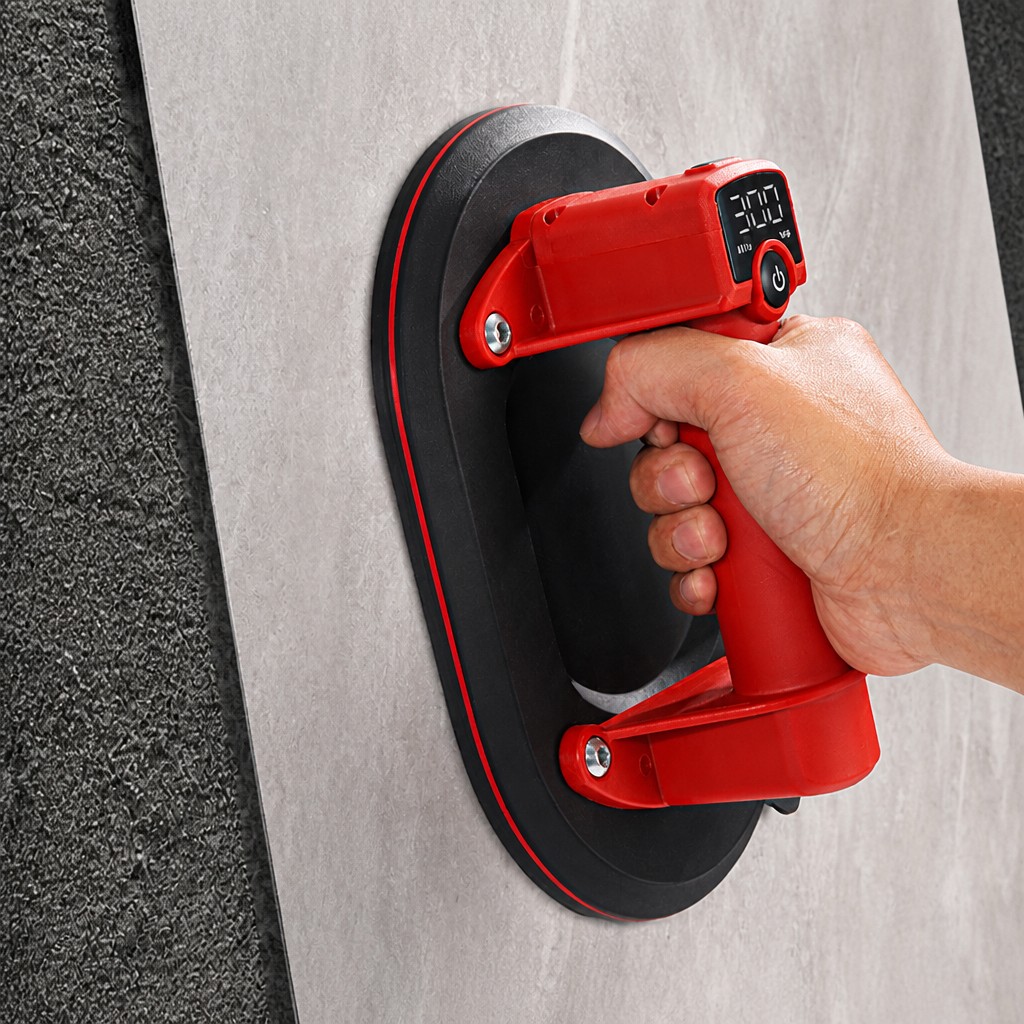

A battery-powered vacuum lifter built for one-person handling of tiles, glass, stone slabs and other flat panels. Pressing the button attaches the pad to the face of the panel, and automatic vacuum top-up holds the grip while the load is carried — so a heavy panel can be lifted, positioned and set down by a single operator instead of two.
The unit is self-contained: pump, battery and controls all sit inside the body, so there is no hose, no compressor and no trailing cable. A digital display on the head shows the vacuum reading at a glance, and the pad is released with the same single button. Bodies are finished in black with red or blue, and the pad itself is black rubber.
Key Features
- One-button attach and release — one hand is enough
- Automatic vacuum top-up holds the grip, with no manual re-pumping
- Self-contained battery power — no compressor, air line or mains cable
- Digital display showing the vacuum reading on the head
- Multi-layer rubber pad with a ribbed contact face
- Sealed pad layers absorb small surface unevenness instead of losing vacuum
- Ribbed face keeps its hold on smooth tiles and on lightly dusty surfaces
- Usable from −20 °C to +80 °C
- USB Type-C charging
- Light enough to carry and operate with one hand

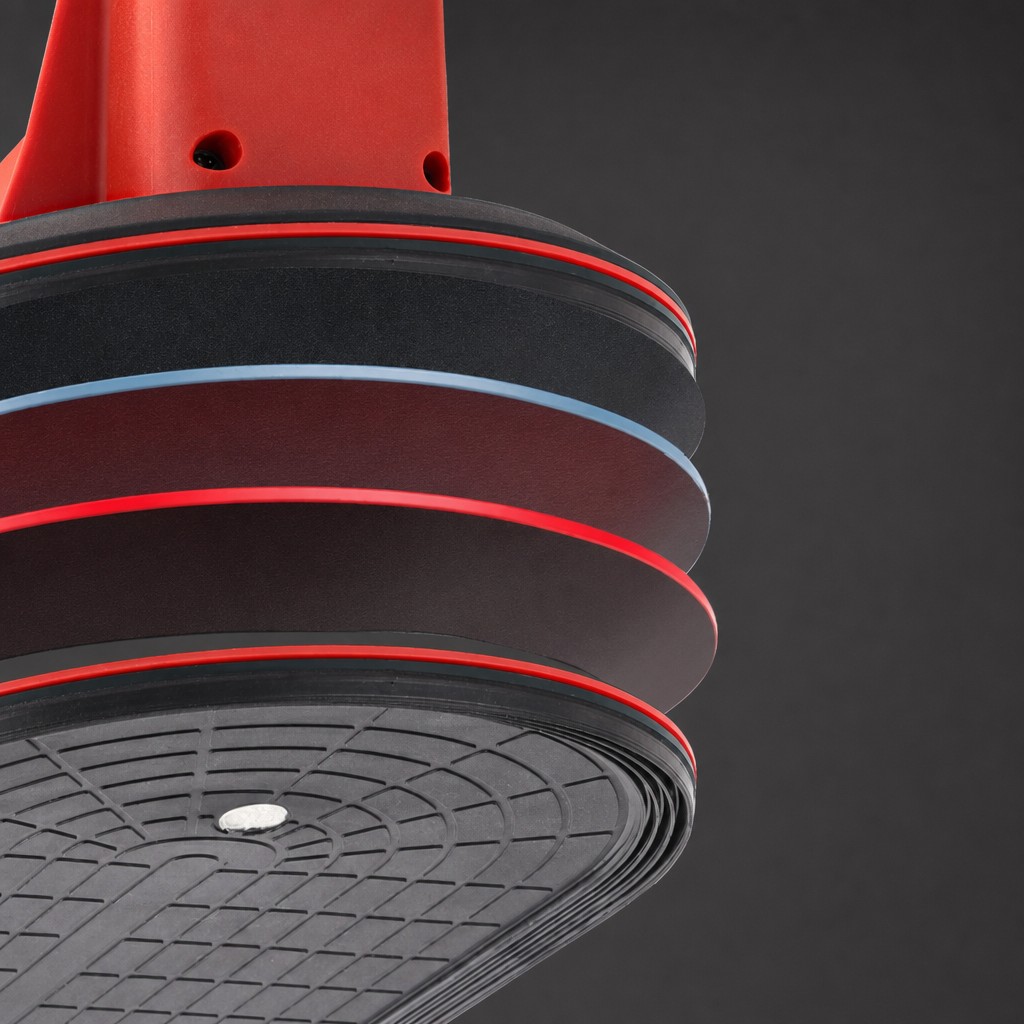

Multi-layer rubber pad
The contact pad is built from three bonded rubber layers: a load-bearing layer, a flexible intermediate layer and the ribbed contact layer. The ribbed face keeps a hold on smooth tiles and on surfaces carrying light dust, and the sealed layers take up small unevenness rather than letting the vacuum escape.
Total rubber thickness is 20 mm and the pad stays usable from −20 °C to +80 °C.
Configurations and Load Capacity
| Configuration | Pad shape | Max load | Pad size | Battery | Body colour | Packaged weight |
|---|---|---|---|---|---|---|
| Single motor, oval pad | Oval | 300 kg | 240 mm | Built-in | Black / red | 2.10 kg |
| Standard, oval pad | Oval | 90 kg | 166 × 90 mm | Built-in | White / red | 1.15 kg |
| Dual motor, oval pad | Oval | 300 kg | 240 × 160 mm | Built-in | Black | 2.20 kg |
| Round pad | Round | 200 kg | 200 mm | Built-in | Black / red | 1.75 kg |
| Oval pad | Oval | 200 kg | 200 mm | Built-in | Black / blue | 1.75 kg |
| Round pad, blue | Round | 200 kg | 200 mm | Built-in | Black / blue | 1.75 kg |
| Round pad, external battery | Round | 200 kg | 245 mm | External | Black / red | 1.75 kg |
| Oval pad, external battery | Oval | 200 kg | 240 × 160 mm | External | Black / red | 2.15 kg |
Load figures are the maximum suction ratings quoted for a clean, smooth, non-porous surface at full vacuum. Real capacity depends on the surface, and the grip must be checked before every lift. Packaged weight includes the case and charger. Other pad sizes and capacities are available to order.
Common Specifications
- Pad material: rubber, three bonded layers
- Rubber thickness: 20 mm
- Working temperature: −20 °C to +80 °C
- Battery: 4000 mAh, 3.7 V
- Charging port: USB Type-C
- Display: digital vacuum readout
- Vacuum control: automatic top-up
- Body size, 300 kg version: 300 × 200 × 200 mm
- Net weight, 300 kg version: 2 kg
- Supplied with: charger, USB Type-C cable and protective carry case
Applications
- Floor and wall tiling
- Glass panel handling and installation
- Stone and ceramic slab positioning
- Sheet material handling in the workshop and on site
- Lifting and placing panels where a crane or frame lifter will not fit
