X-Frame Glass Lifter
Overview

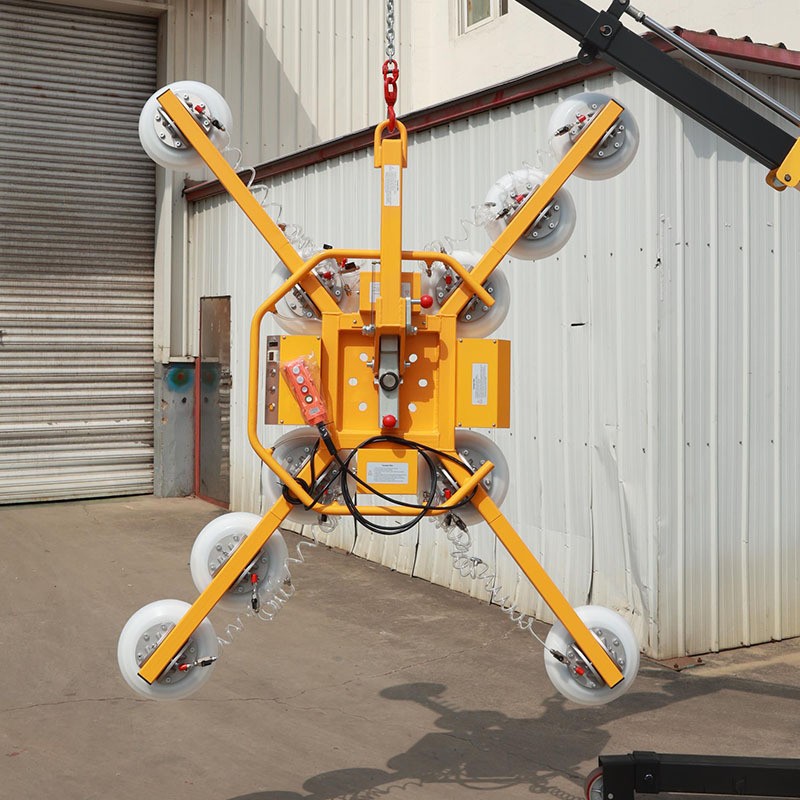

An X-frame vacuum lifter is a crane-suspended lifting head for flat material. Four arms radiate from a central hub in an X pattern, two suction cups sit on each arm, and the whole head hangs from a crane hook or jib. The arms slide along their slots, so one frame can be set wide for a full glass sheet or drawn in for a narrow panel without changing the head.
The series covers 400 kg to 1,200 kg with 4 to 12 cups on Ø300 mm pads, each cup rated for 100 kg. The suspension head turns 360° by hand and tilts 90°, which is what makes it useful on a facade: the panel is picked up flat, swung round and brought to the angle it has to be installed at while the vacuum stays on. A digital gauge on the cabinet shows the vacuum level and an audible and visual alarm warns if it falls.
Key Features
- X-shaped suction frame with four arms that slide in their slots, so the cups can be set to the panel
- Lifting capacity from 400 kg to 1,200 kg on one frame family
- Cup quantities from 4 to 12, all on Ø300 mm non-marking pads
- Each suction cup is rated for 100 kg, so capacity is spread across the whole frame
- 360° manual rotation in the suspension head
- 90° manual tilt for facade and roof glazing work
- Oil-free vacuum pump with a working vacuum of -0.06 to -0.08 MPa
- Built-in vacuum reservoir that keeps the load held if the power supply is interrupted
- Audible and visual low-vacuum alarm on the control cabinet
- Digital vacuum gauge plus vacuum on / off controls on the cabinet
- Wired remote control, so the operator can work from the edge of the panel
- Emergency stop on the body and on the hand control
- High-strength manganese-steel frame, packed in a wooden box for shipping
How the X-frame holds a panel
The X layout is about the way the load is carried, not only how heavy it is. Every cup shares it, so a large sheet is supported at several points instead of being gripped at one, and the middle of the panel does not bow on the way up.
The cups are non-marking. Polished glass, coated aluminium and finished stone come off the frame as they went on, with no clamps, no contact marks and no polishing afterwards.

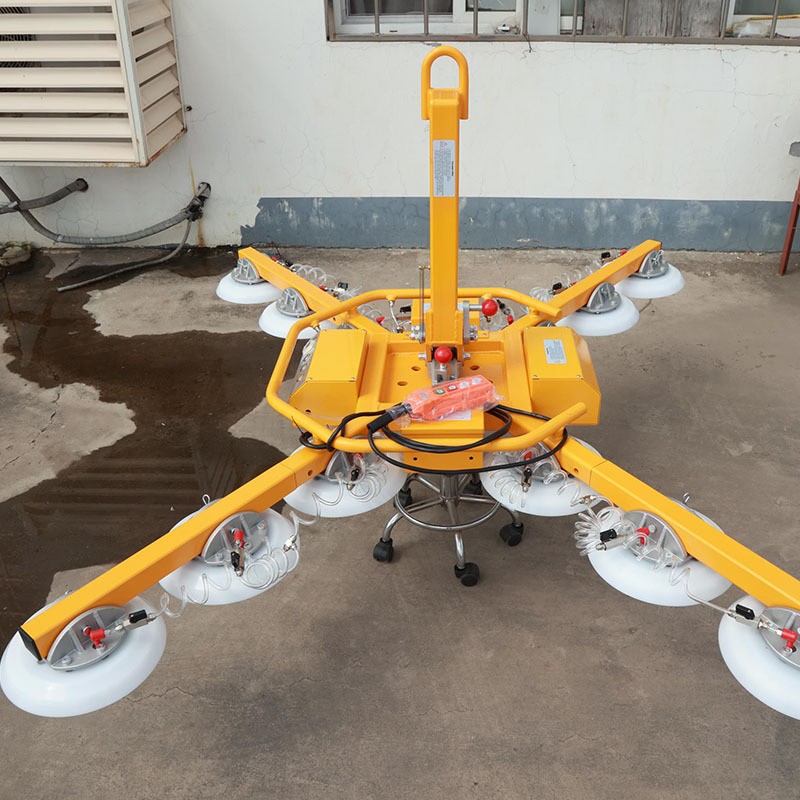

Arm positions are set once for a panel size and re-set when the next job is a different size. A 500 mm extension bar adds reach where the panel sits back from the crane line.

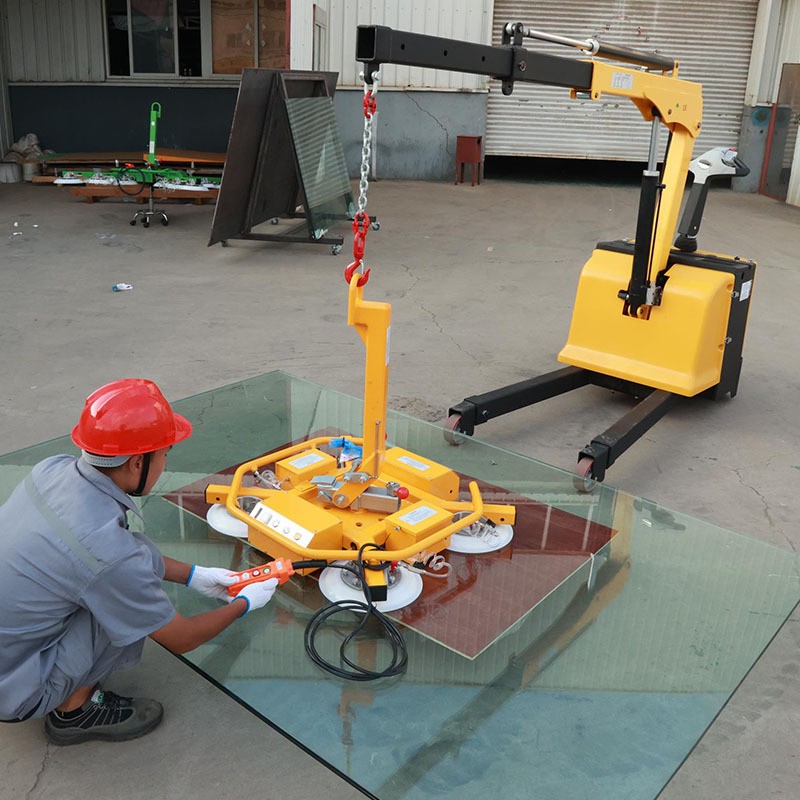

Because the head is suspended rather than mounted on a mast, it goes wherever the crane reaches: a jib on a workshop gantry, a mobile crane outdoors, or a truck-mounted crane at a delivery bay.
Specifications
| Lifting capacity | Suction cups | Cup diameter | Cup capacity each | Own weight | Sucker frame size | Gross weight |
|---|---|---|---|---|---|---|
| 400 kg | 4 | 300 mm | 100 kg | 70 kg | 850 × 750 × 300 mm | 97 kg |
| 600 kg | 6 | 300 mm | 100 kg | 90 kg | 1,800 × 900 × 300 mm | 110 kg |
| 800 kg | 8 | 300 mm | 100 kg | 100 kg | 1,760 × 1,460 × 300 mm | 123 kg |
| 1,000 kg | 10 | 300 mm | 100 kg | 120 kg | 1,900 × 1,600 × 300 mm | 150 kg |
| 1,200 kg | 12 | 300 mm | 100 kg | 120 kg | 1,900 × 1,600 × 300 mm | 163 kg |
Specifications are for the standard crane-suspended build. Cup quantity, frame size and arm layout are set to the panels you handle, so send us the sheet sizes and weights and we will confirm the configuration before you order.
Other Specifications
- Rotation: 360° manual in the suspension head
- Tilting: 90° manual
- Power supply: DC 12 V
- Charger: 110–240 V AC input, smart charger
- Vacuum pump: oil-free
- Working vacuum: -0.06 to -0.08 MPa
- Vacuum reservoir tank: built in, maintains suction if power is lost
- Safety alarm: low-vacuum audible and visual warning
- Extension bar: 500 mm
- Control system: integrated control cabinet with a digital vacuum gauge and vacuum on / off, plus a wired remote
- Frame material: high-strength manganese steel
- Packing: wooden box, overall 1,230 × 910 × 390 mm
Control and safety

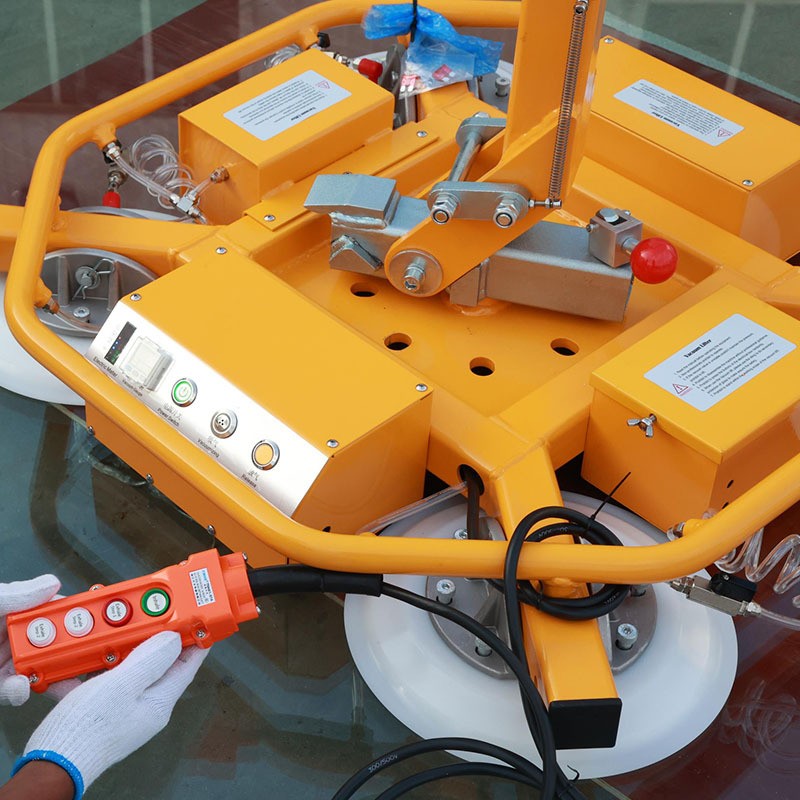

Everything the operator touches is on the cabinet or in the hand control. The cabinet carries the vacuum gauge, the vacuum on / off buttons and the alarm. The wired remote lets one person stand at the edge of the sheet, watch the panel meet the frame and release or re-apply the vacuum from there instead of walking back to the head.

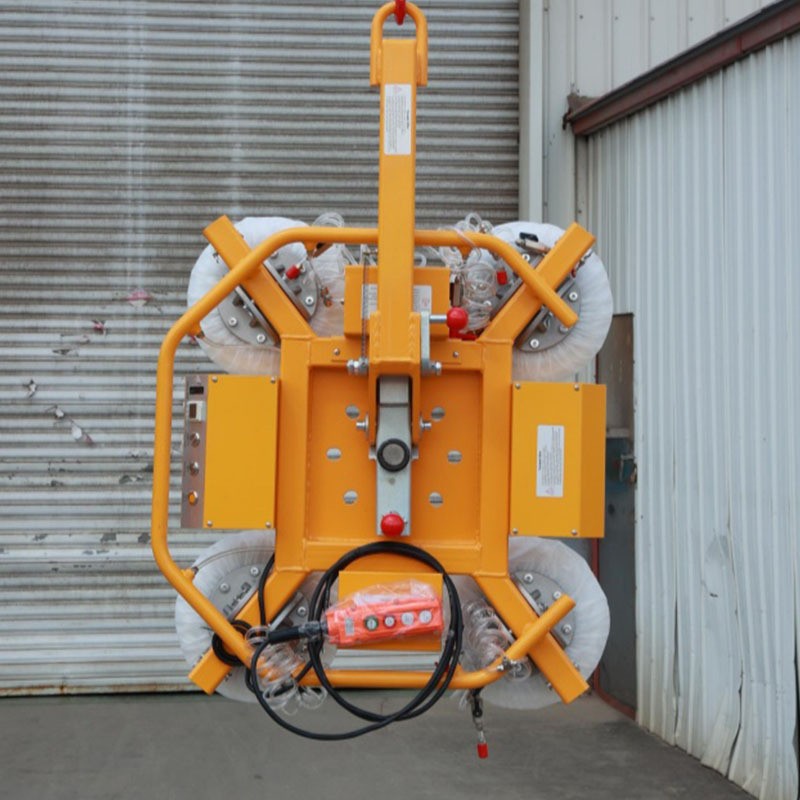

Two protections matter on a lifter that carries glass over people. A vacuum reservoir tank holds the suction if the power supply fails, so the panel does not drop while it is in the air; and the low-vacuum alarm sounds and lights before the hold becomes unsafe. Emergency stops are fitted on the body and on the hand control.
The head is built on a high-strength manganese-steel frame, with the pump and the reservoir inside the central hub, and it ships in a wooden box.
Not limited to the standard builds
These are the standard configurations, not the limit of what we build. Load capacity, cup quantity and cup diameter, frame size, arm length, extension bar and control arrangement can all be adapted to the material you lift.
Send us the panel sizes, the weights and a photo of the site, and we will come back with a configuration that fits. Request a quotation or email us and we will take it from there.
Where the X-frame lifter is used
The adjustable frame suits any flat, non-porous workpiece, which is why the same head turns up on glass lines and in stone yards, sheet-metal shops and warehouses.
- Curtain wall and facade glazing
- Glass processing, tempering and insulating glass lines
- Marble, granite and quartz slab handling
- Metal sheet, aluminium and composite panel work
- Plywood, MDF and decorative board handling
- Container, truck and rack loading
- Prefabricated building and interior fit-out
- Solar panel and acrylic sheet production
One operator with the hand control can pick up, turn and place a full sheet without slings, clamps or a second pair of hands.
